WA Series Air Cooling

WA Series Air Cooling is Handheld Laser Welding Machine 1500W with air cooling. Optional for standard handheld type, equipped with robot arm, multi-function laser welding or customized solution. It is widely applied to many metal welding fields.
Ask Price +86 18994470782

Product details

Technical parameter

Product application

WA Series Air Cooling is Handheld Laser Welding Machine 1500W with air cooling.


Features and Advantages

A. The machine is easy to handle and don't need the professional welder.
B. With 8-15m fiber wire, Can weld long-distance and large-area parts.
C. High quality and very stable: With a long lifespan to 100000 hours and free of maintenance.
D. High efficiency: more than 5 times of the TIG welding with low energy consumption.
E. Various welding processes: jam welding, seal welding, spot welding, stitch welding and overlap welding .
F. Inappreciable heat-affected zone, little deformation good-looking smoothly welding seam.
G. Little remedial work after welding, high-quality of welding line, precise control of positioning accuracy, small spot focus and automated welding
H. Low cost, no consumables, energy saving and environment protection.
I. With the auto wire feeding, IT cover more wide gap and enlarge the application.


A comparison between traditional TIG welding and Laser welding:


Tig Welding

Laser Welding

Heat

Very high

Very low

Deformation

Easy to deform

No deformation

Processing time

Long

Short

Welding workload

2 professional welders

1 operator

Exterior

Unsightly, need polishing

Smooth and beautiful, polishing free

Welding spot

Large welding spot

Fine welding spot, adjustable

Perforation

Easy to pierce

Not easy to perforate, controllable

Protective gas

Need argon or N

Need argon or N

Precision

General

Precision

Power consumption

High

Low

Safety

Ultraviolet light, radiation

Radiation-free

Model

HY-WA01

Laser Power

1500W

Welding depth (SS)

3.59mm

Welding depth (CS)

3.2mm

Welding depth (Al)

3mm

Feeding Wires' Dimension

0.8-1.6 wire

Laser Wavelength

1070 +/-10 nm

Laser Frequency

50-5000HZ

Position System

Red Light Indicator

Power Adjustment

10-100%

Cooling Method

Air Cooling

Spot Size

1.2-3.0mm (option)

Welding Head

Wobble Laser Welding Head

Power Instability

<3%

Shielding Gas Flow

15-20 L/min (Ar Or N)

Power Supply

220V 50&60HZ

Size(L*W*H) CM

80*22*80

Net Weight

50KG

Total Power Consumption

≤4.5KW

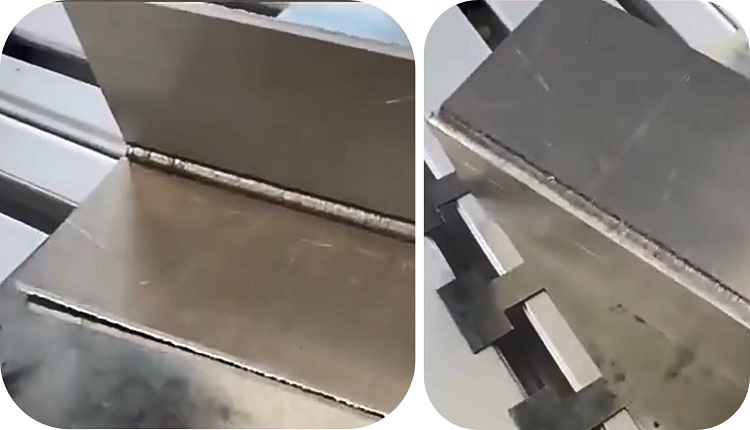

Laser Welding Machine is widely used in mobile phone battery shell, household appliances,electronic components, mobile communication, hardware products, automotive accessories, glasses, kitchen industry , advertisement, stainless aluminum windows and doors, medical equipment, thermal cups and etc. other industries.
